BIOQUANT SCAN Software

The BIOQUANT SCAN Add-on to BIOQUANT OSTEO supports the scanning, viewing, analysis, and sharing of large digital images created from glass tissue slides or welled plates.

BIOQUANT is bringing digital pathology tools to basic research labs by lowering equipment costs, expanding imaging capabilities, and simplifying the private sharing and public release of data.

Reasons to Scan your Samples

  1. Freedom: Measure scans at any magnification, work anywhere you like, collaborate with colleagues world-wide.
  2. Security: Preserve samples against stain degradation and accidents.
  3. Accountability: See exactly what was measured and precisely what the section looked like when it was measured.

Complete Hardware Control

BIOQUANT SCAN supports either your microscope with a microscope upgrade kits (Kit 3 or Kit 4), or the BIOIMAGER Scanning Microscope.

OSTEOIMAGER Scanning Microscope

Using the OSTEOIMAGER microscopy scanner, you can change the objective lens, control the brightfield or excitation light source, move the stage, and capture images all from a unified software application.

Microscope Kit 1.png

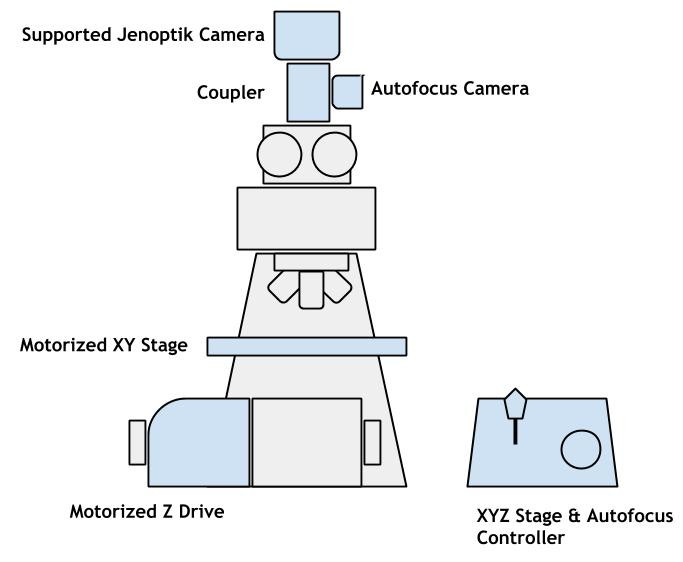

Microscope Upgrade Kits

Using a scanning upgrade kit to your existing microscope, you can scan tissue sections or welled plates.

BIOQUANT SCAN supports Kit 3 and Kit 4.

Scan up to 8 tissue sections or 96 wells


Scan Slides

Scan up to 8 tissue sections on 4 slides. The typical scan time is about 8 minutes per section with a 20X objective.


Scan Plates

Scan up to 96 wells per plate, at a typical scan time of about 3 minutes per well with a 10X objective.

Analyse Scans in BIOQUANT OSTEO

In BIOQUANT OSTEO, open very high resolution scans, up to 4 GB, into the Large Image Navigator. Use the Zoom buttons to zoom from 40x out to 1x. Use the Pan box to navigate the scan and pull images to measure into the Image window. All zoom levels automatically adjust to the correct micron calibration for measurement.

Export Scanned Images

Save calibrated BIF (BIOQUANT Image Format) images for analysis in BIOQUANT OSTEO. Save images in uncalibrated formats like BMP or TIF, or save images with measurement tracings to SVG format for digital supplements.
